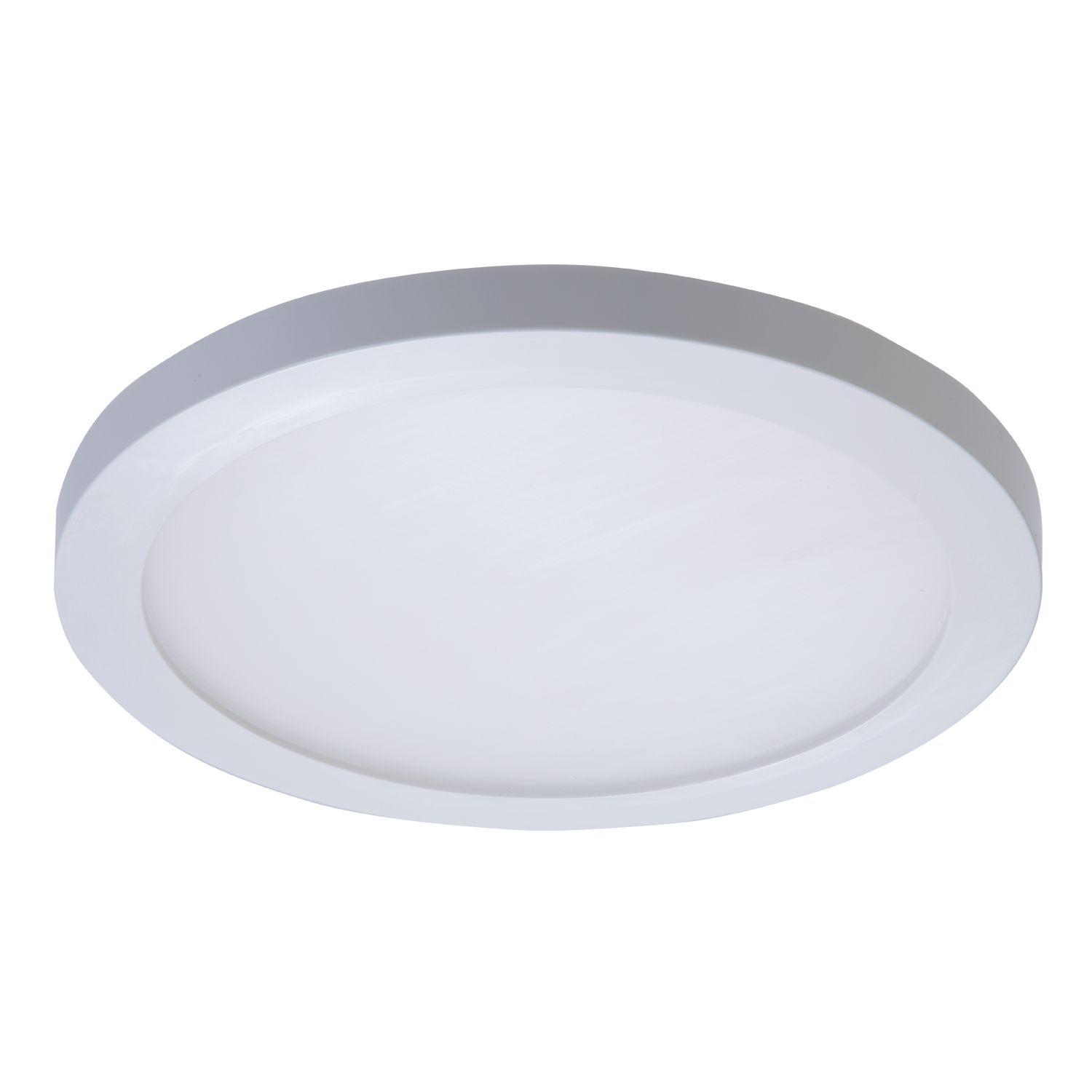

SMD6R6940WH - Discontinued 6" 10W Led Round Surface Mount 40K

Halo

$30.58 (Each)
$30.58 (Each)

In-Stock: 20 available at other locations ( find a store with stock)

Buy Now

QTY:

Each

EES Spec Sheet
MFR Spec Sheet
Suggest Changes
This item is currently unavailable from the manufaturer

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: SMD6R6940WH Vendor Code ETL
Manufacturer: Halo
Manufacturer's Part Number: SMD6R6940WH
Description: *Discontinued* 6" 10W Led Round Surface Mount 40K
Downlight, 120 V, 0.0811 A, 9.6 W, Aluminum (Housing);Polystyrene (Lens);Polycarbonate (Frame) Material, Mate White, White, 4000 K, 94, 50000 H Average Life, Dimmable, 792 LM Brightness (Lumens), 7-5/8 In Diameter, 1.79 LB
Slang Terms: Suggest a New Term
Categories: Led Architectural & Specificat - Led Recessed Architectural & S Mark as Incorrect
Suggest a New Category
Classification: Led Architectural & Specification Lighting
UNSPSC: 39111505 - Recessed lighting
UPC/GTIN: 080083767533 / 00080083767533
Weight per unit: 1.7999 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $30.58 (Each)

Stock Availability

Concord: 0 (Find nearest stock)
Charlotte: 0
All Stores: 20

Resources

Brochures
: SMD6R6940WH - Brochure
Images
: SMD6R6940WH - Video
: SMD6R6940WH - Large Image
: SMD6R6940WH - Small Image
: SMD6R6940WH - Large Image
: SMD6R6940WH - Large Image
: SMD6R6940WH - Large Image
: SMD6R6940WH - Large Image
: SMD6R6940WH - Large Image
Attachments
: SMD6R6940WH - Specification Sheet
: SMD6R6940WH - Specification Sheet
: SMD6R6940WH - Specification Sheet
: SMD6R6940WH - Specification Sheet
Other Links
: SMD6R6940WH - Other
: SMD6R6940WH - Other
: SMD6R6940WH - Other
: SMD6R6940WH - Other

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Ballast Type: N/A
Current Rating: 0.0811 A
Lamp Included: Yes
Lamp Type: LED
Material: Aluminum (Housing);Polystyrene (Lens);Polycarbonate (Frame)
Number Of Lamps: 1
Voltage Rating: 120
Wattage: 9.8

Material, Color, and Finish

Color: White
Color Rendering Index: 94
Color Temperature: 4000 K
Finish: Mate White
Style: 12.2

Dimensions and Weight

Diameter: 7-5/8 in;193 mm

Descriptions

Construction: 0.176 A at 120 V and 0.082 A at 277 V
Description: 6" 10W LED ROUND SURFACE MOUNT 40K
Extra Long Description: ETNCL SMD6R6940WH 6"ROUNDSURFACEMOU
Features: The Halo Surface Mount LED Downlight (SMD) is an low profile surface mounting luminaire with a modern look and high performance. SMD6 (6”) is available in 120v through 277v configurations and is designed for installation in many 3-1/2” and 4” square, octagon, or round junction boxes. Supply wire adapter with LED quick wiring connector included. The SMD6 may also retrofit in 5” and 6” aperture IC and Non-IC recessed housings.
Long Description: Downlight, 120 V, 0.0811 A, 9.6 W, Aluminum (Housing);Polystyrene (Lens);Polycarbonate (Frame) Material, Mate White, White, 4000 K, 94, 50000 h Average Life, Dimmable, 792 lm Brightness (Lumens), 7-5/8 in Diameter, 1.79 lb
Product Type: Downlight
Short Description: 6" Downlight, 10 W, 120 V, 9.6 W
Special Features: Ultra-low profile surface luminaire with wide distribution

Additional Information

Average Life: 50000 h
Brightness (Lumens): 792 lm
Dimmable: Yes
Fixture Type: Open Office, Retail
Includes: Screwbase Adapter
Media: Yes
Package Quantity: 1 ct
Standards Met: UL/cUL Listed - Damp Location;ECCN:EAR99NLR;RoHS Compliant
Total Wattage: 9.6 W

Manufacturer Information

Brand: HALO
Manufacturers Part Number: SMD6R6940WH
Sub Brand: Open Office, Retail
GTIN: 00080083767533
UPC: 080083767533

Taxonomies, Classifications, and Categories

Category Description: LED ARCHITECTURAL & SPECIFICATION LIGHTING
Type: SMD6 LED

Trade Size

Aperture Size: ECCN: EAR99NLR

Availability

Manufacturer Status: Inactive

Packaging

Weight: 1.79 lb
Weight per each: 1.7999
Carton: 1

Uses, Certifications, and Standards

Application: lighting
Energy Star: yes
Mounting: Surface or Recessed
Standard: cULus Listed - Damp Location;cULus Listed - Wet Location;Energy Star Certified;Airtite
